Part Number :

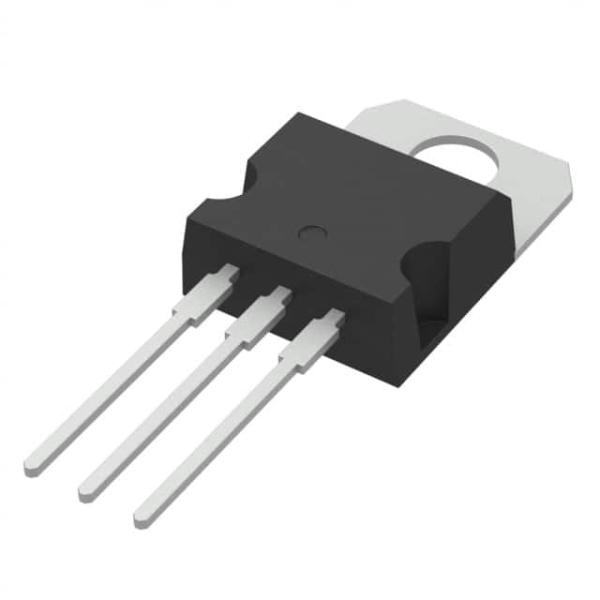

STP21NM50N
Manufacturer :
STMicroelectronics
Description :
STP21NM50N datasheet pdf and Transistors - FETs, MOSFETs - Single product details from STMicroelectronics stock available at Rozee
Lifecycle :
New from this manufacturer
Delivery :
DHL、UPS、FedEx、Registered Mail
Payment :
T/T Paypal Visa MoneyGram Western Union
More Information :
STP21NM50N More Information
ECAD :
Request Free CAD Models
Pricing(USD) :
$0.00
Remark :
Manufacturer: STMicroelectronics.
Rozee is one of the Distributors.
Wide range of applications.
Mount :
Through Hole
Height :
9.15 mm
Fall Time :
30 ns
Rds On Max :
190 mΩ
Current Rating :
18 A
Input Capacitance :
1.95 nF
Threshold Voltage :
3 V
Turn-On Delay Time :
22 ns
Voltage Rating (DC) :
500 V
Max Power Dissipation :
140 W
Min Operating Temperature :
-55 °C
Gate to Source Voltage (Vgs) :
25 V
Drain to Source Voltage (Vdss) :
500 V
Products Category :
Discrete Semiconductor - Transistors - FETs, MOSFETs - Single
Qty :
105 In Stock
Applications :
Advanced driver assistance systems (ADAS)
Electronic point of sale (EPOS)
Mobile phones
Width :
4.6 mm
Length :
10.4 mm
Rise Time :
18 ns
Case/Package :
TO-220
Number of Pins :
3
Power Dissipation :
140 W
Number of Elements :
1
Turn-Off Delay Time :
90 ns
Element Configuration :
Single
Max Operating Temperature :
150 °C
Drain to Source Resistance :
150 mΩ
Continuous Drain Current (ID) :
18 A
Drain to Source Breakdown Voltage :
500 V
