Part Number :

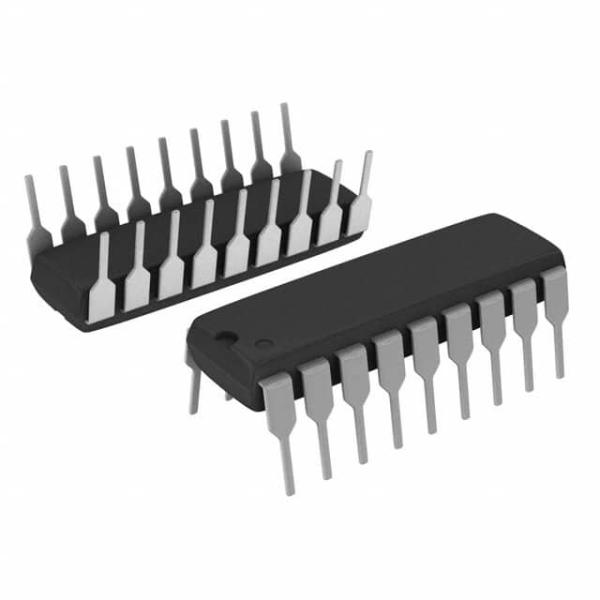

ULN2803A
Manufacturer :
STMicroelectronics
Description :
ULN2803A datasheet pdf and Transistors - Bipolar (BJT) - Arrays product details from STMicroelectronics stock available at Rozee
Lifecycle :
New from this manufacturer
Delivery :
DHL、UPS、FedEx、Registered Mail
Payment :
T/T Paypal Visa MoneyGram Western Union
More Information :
ULN2803A More Information
ECAD :
Request Free CAD Models
Pricing(USD) :
$1.43
Remark :
Manufacturer: STMicroelectronics.
Rozee is one of the Distributors.
Wide range of applications.
Mount :
Through Hole
Height :
3.68 mm
Weight :
1.270087 g
Schedule B :
8541290080
Current Rating :
500 mA
Output Current :
500 mA
Contact Plating :
Tin
Number of Outputs :
8
Number of Channels :
2
Turn-On Delay Time :
250 ns
Voltage Rating (DC) :
50 V
Max Power Dissipation :
2.25 W
Min Operating Temperature :
-20 °C
Continuous Collector Current :
500 mA
Ambient Temperature Range High :
85 °C
Collector Emitter Breakdown Voltage :
50 V
Products Category :
Discrete Semiconductor - Transistors - Bipolar (BJT) - Arrays
Qty :
2325 In Stock
Applications :
Factory automation & control
Data center & enterprise computing
Body electronics & lighting
Width :
7.1 mm
Length :
23.24 mm
Polarity :
NPN
Case/Package :
PDIP
Number of Pins :
18
Output Voltage :
50 V
Max Input Voltage :
30 V
Max Output Voltage :
50 V
Number of Elements :
8
Turn-Off Delay Time :
250 ns
Max Collector Current :
500 mA
Max Operating Temperature :
85 °C
Emitter Base Voltage (VEBO) :
50 V
Max Junction Temperature (Tj) :
150 °C
Collector Emitter Voltage (VCEO) :
50 V
Collector Emitter Saturation Voltage :
1.1 V
