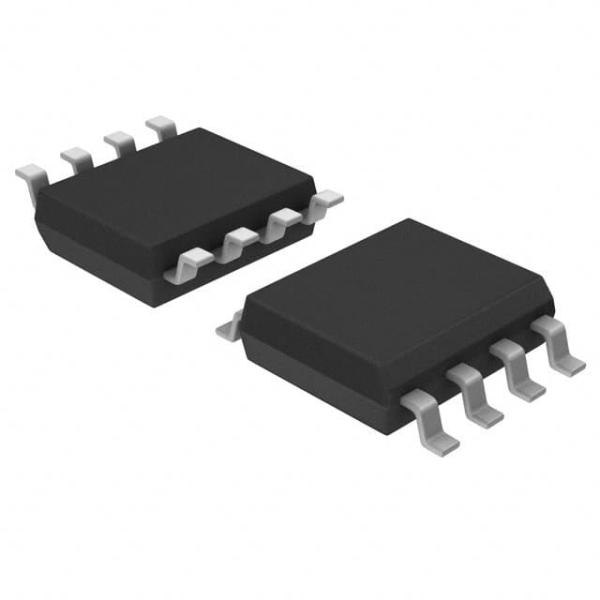

Part Number :
AD8138ARZ
Manufacturer :
Linear Technology (Analog Devices, Inc.)
Description :
AD8138ARZ datasheet pdf and Linear - Amplifiers - Special Purpose product details from Linear Technology (Analog Devices, Inc.) stock available at Rozee
Lifecycle :
New from this manufacturer
Delivery :
DHL、UPS、FedEx、Registered Mail
Payment :
T/T Paypal Visa MoneyGram Western Union
More Information :
AD8138ARZ More Information
ECAD :
Request Free CAD Models
Pricing(USD) :
$8.90
Remark :
Manufacturer: Linear Technology (Analog Devices, Inc.).
Rozee is one of the Distributors.
Wide range of applications.
Gain :
1 dB
Width :
4 mm
Length :
5 mm
Packaging :
Bulk
Resistance :
6 MΩ
Termination :
SMD/SMT
Voltage Gain :
0.028 dB
-3db Bandwidth :
320 MHz
Output Current :
95 mA
Input Bias Current :
7 µA
Min Supply Voltage :
2.7 V
Number of Elements :
1
Number of Amplifiers :
1
Gain Bandwidth Product :
320 MHz
Max Dual Supply Voltage :
5.5 V
Operating Supply Current :
20 mA
Max Operating Temperature :
85 °C
Input Offset Voltage (Vos) :
1 mV
Common Mode Rejection Ratio :
70 dB
Products Category :
Integrated Circuits (ICs) - Linear - Amplifiers - Special Purpose
Qty :
9878 In Stock
Applications :
Grid infrastructure
Electronic point of sale (EPOS)
Mount :
Surface Mount
Height :
1.5 mm
Bandwidth :
320 MHz
Slew Rate :
1150 V/µs
Schedule B :
8542330000
Case/Package :
SOIC
Settling Time :
16 ns
Number of Pins :
8
Power Dissipation :
550 mW
Max Supply Voltage :
11 V
Number of Channels :
1
Dual Supply Voltage :
5 V
Max Power Dissipation :
550 mW
Nominal Supply Current :
20 mA
Min Dual Supply Voltage :
1.4 V
Operating Supply Voltage :
9 V
Min Operating Temperature :
-40 °C
Output Current per Channel :
95 mA
Power Supply Rejection Ratio (PSRR) :
70 dB
